UI Guide

Home screen

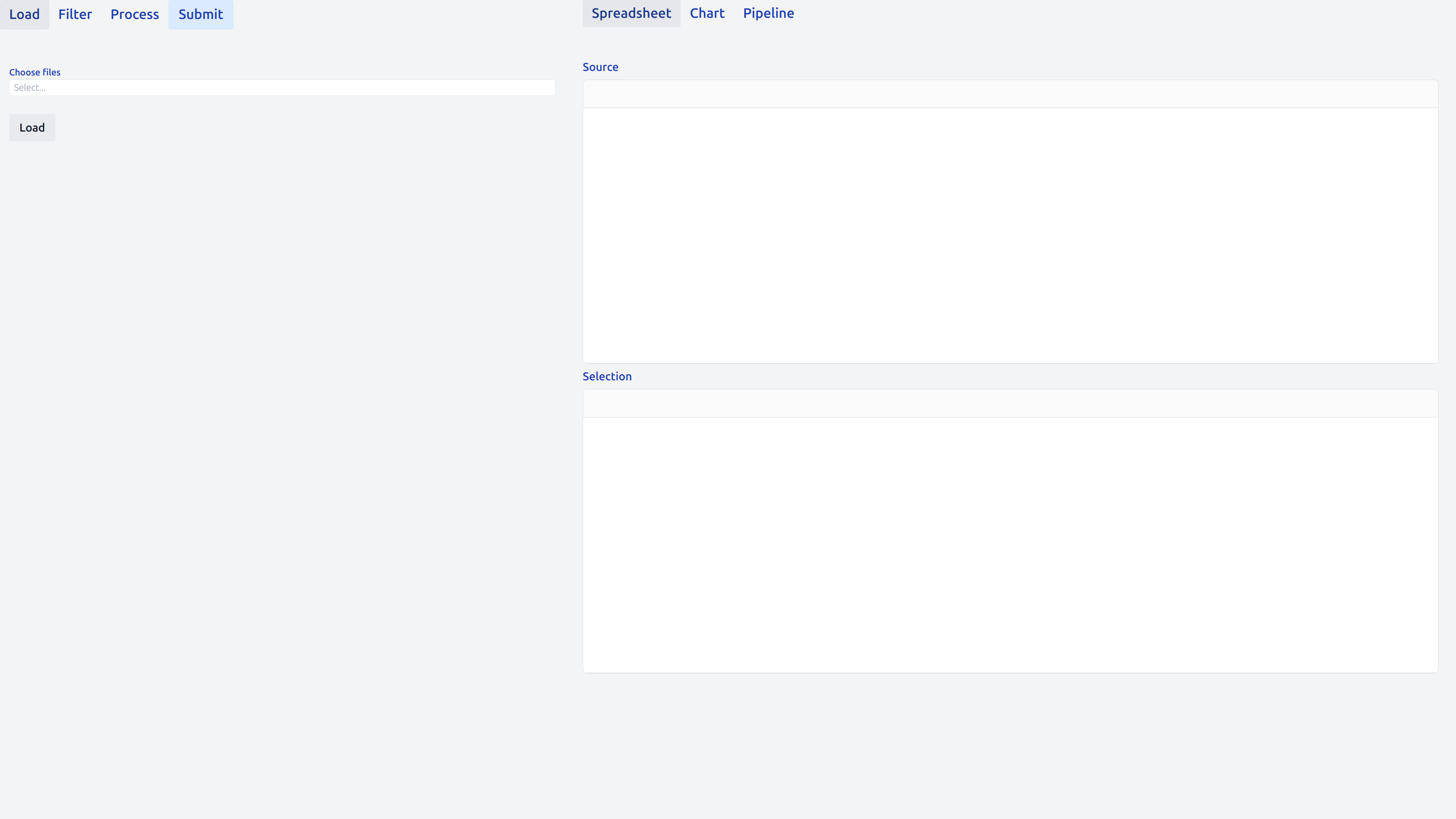

After opening the browser at the starting page (see Getting Started), you will be greeted by the following page.

Loading data

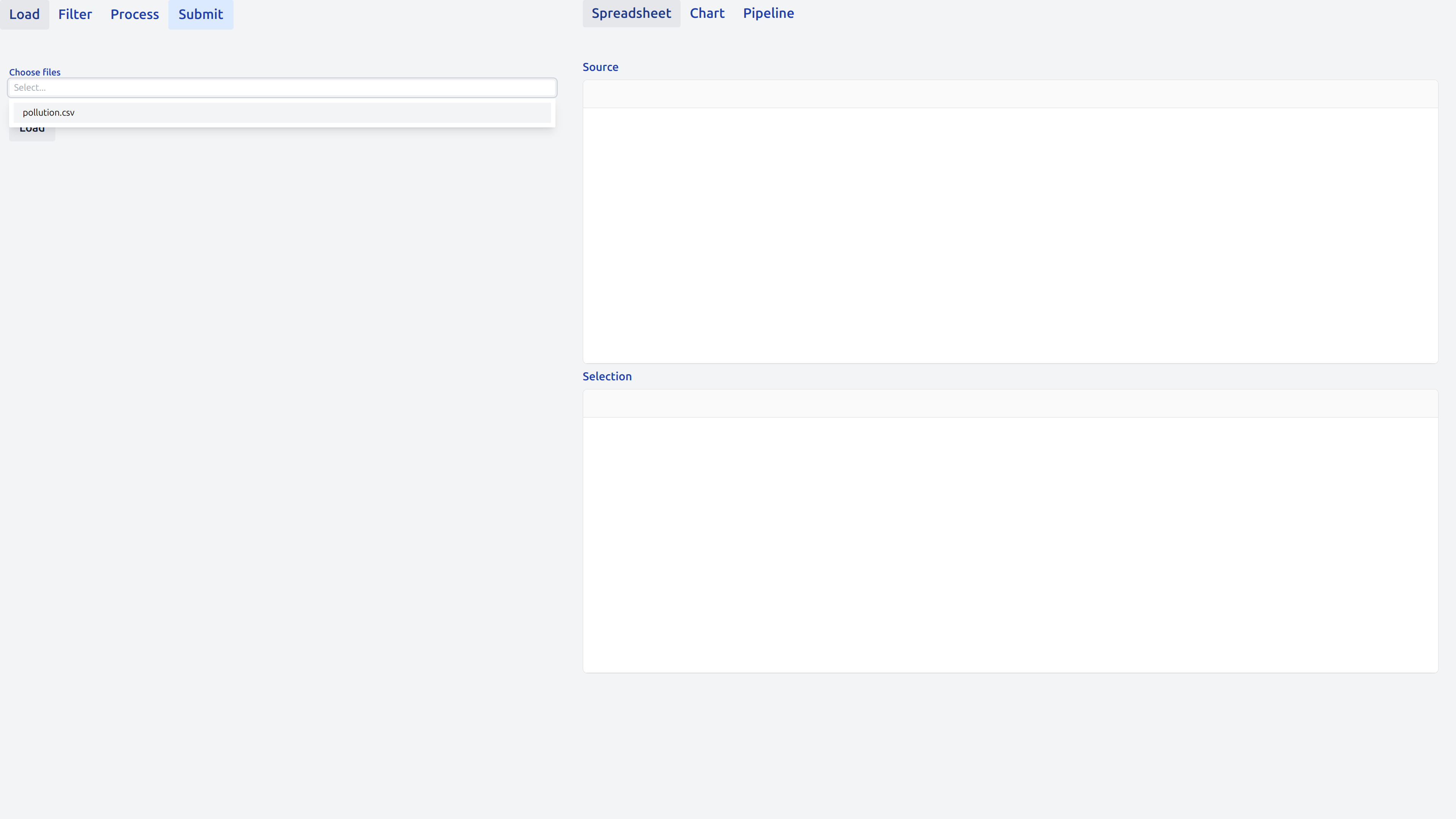

To load data, simply select one or more files from the "Choose files" dropdown.

You will have access to all the files available in you data directory, provided that their format is supported. See also DataIngestion.is_supported.

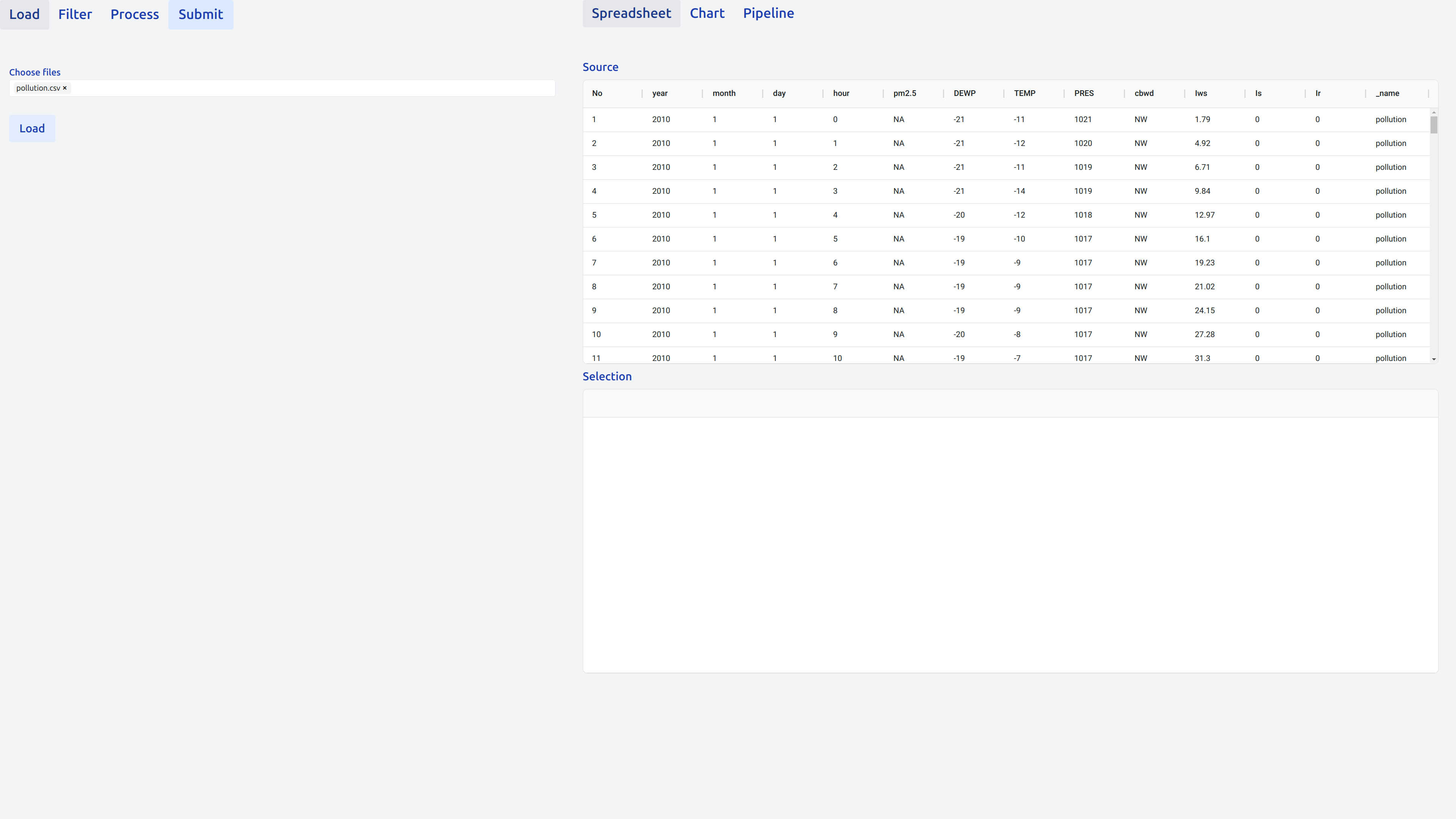

Upon pressing the Load button, the data is loaded in the Source table, displayed on the top right.

Filtering data

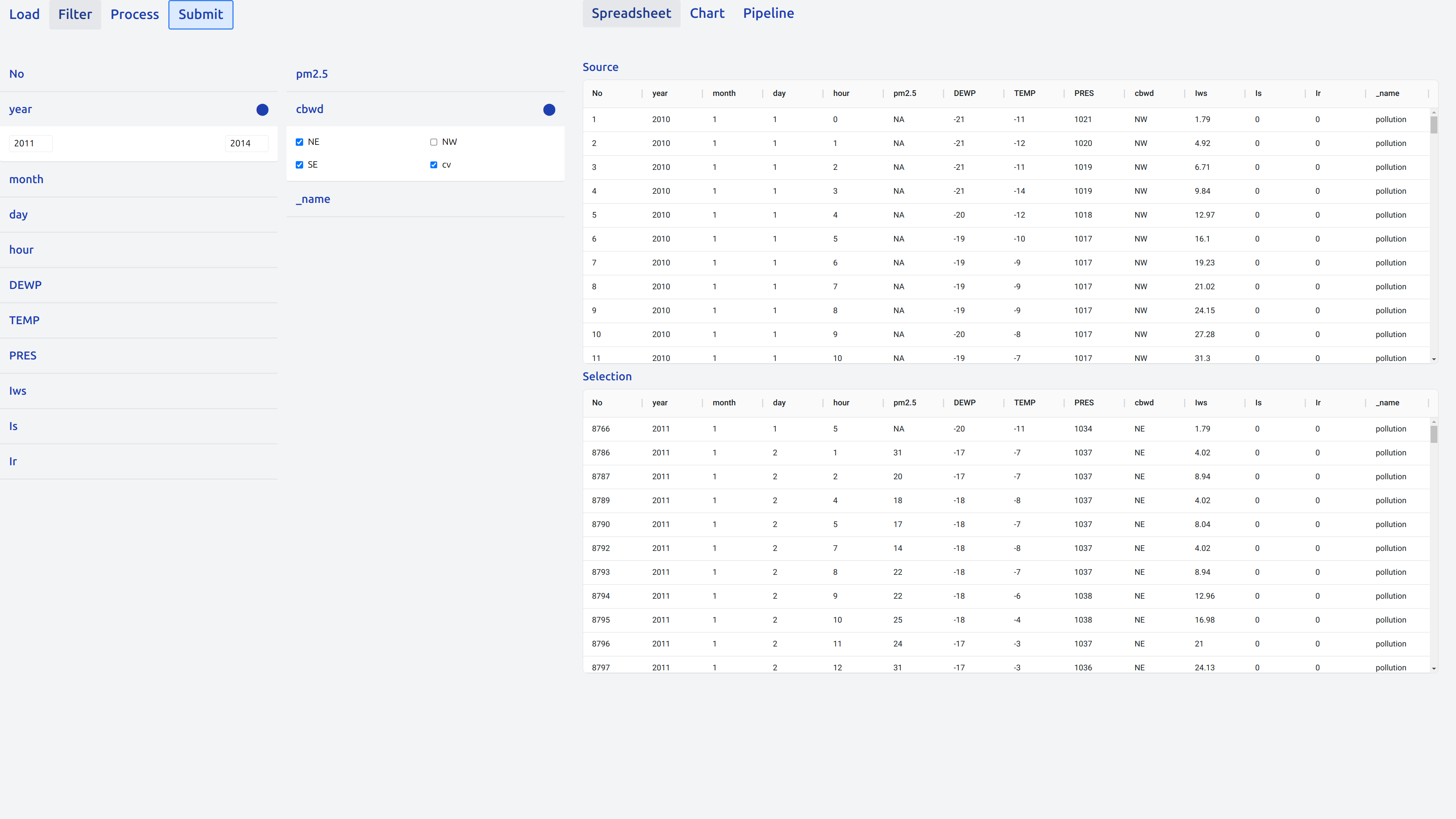

The Filter tab allows users to filter their data. At the moment, we support checkboxes for categorical columns and min / max selectors for continuous ones.

Upon clicking on Submit, the filtered data is loaded in the Selection table, displayed on the bottom right.

Processing data

Data is processed via cards, small building blocks that add new columns to the filtered data.

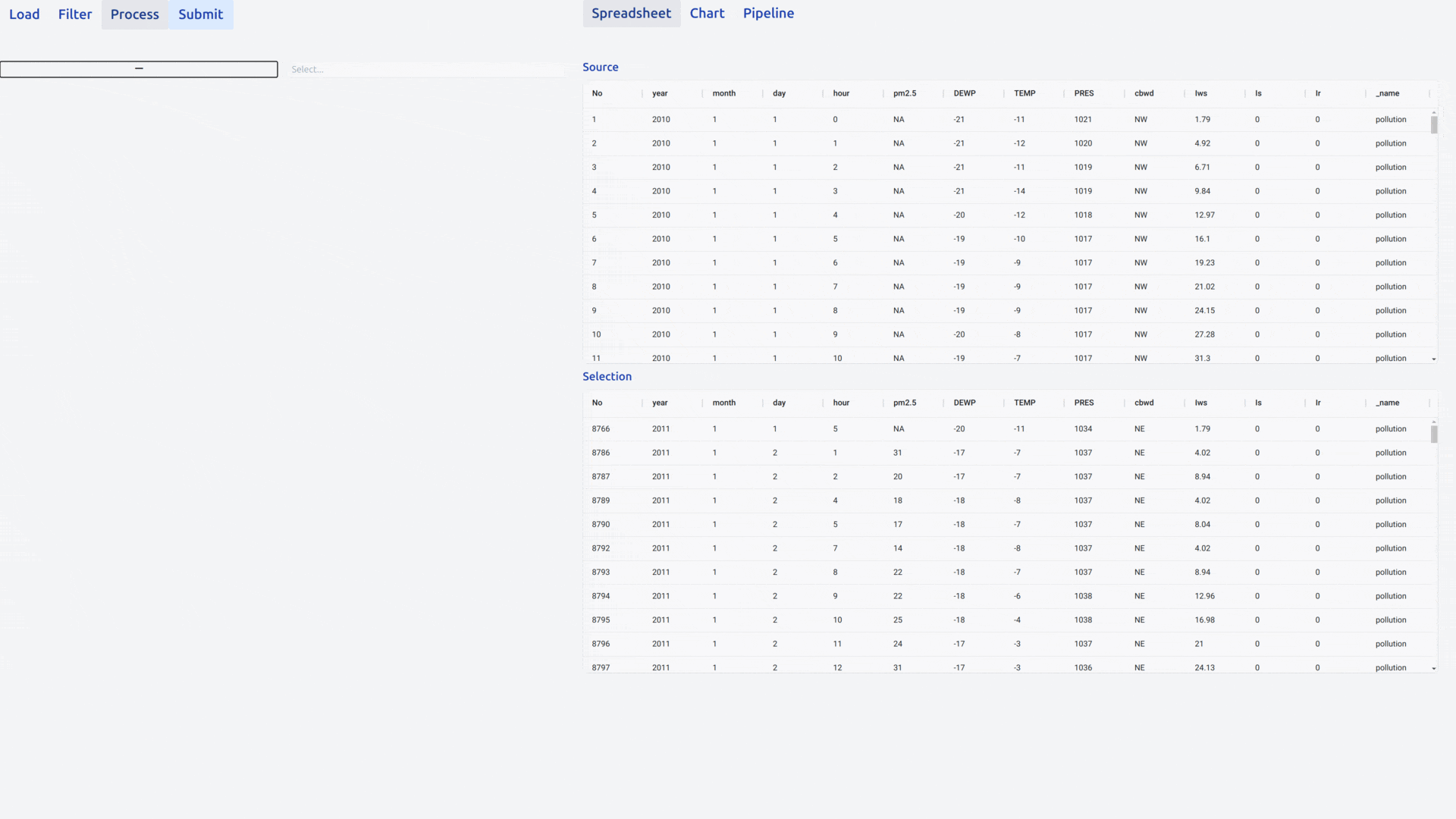

To add a new card, click on the ＋ and select the type of card you wish to add.

You can add and compile as many cards as you wish.

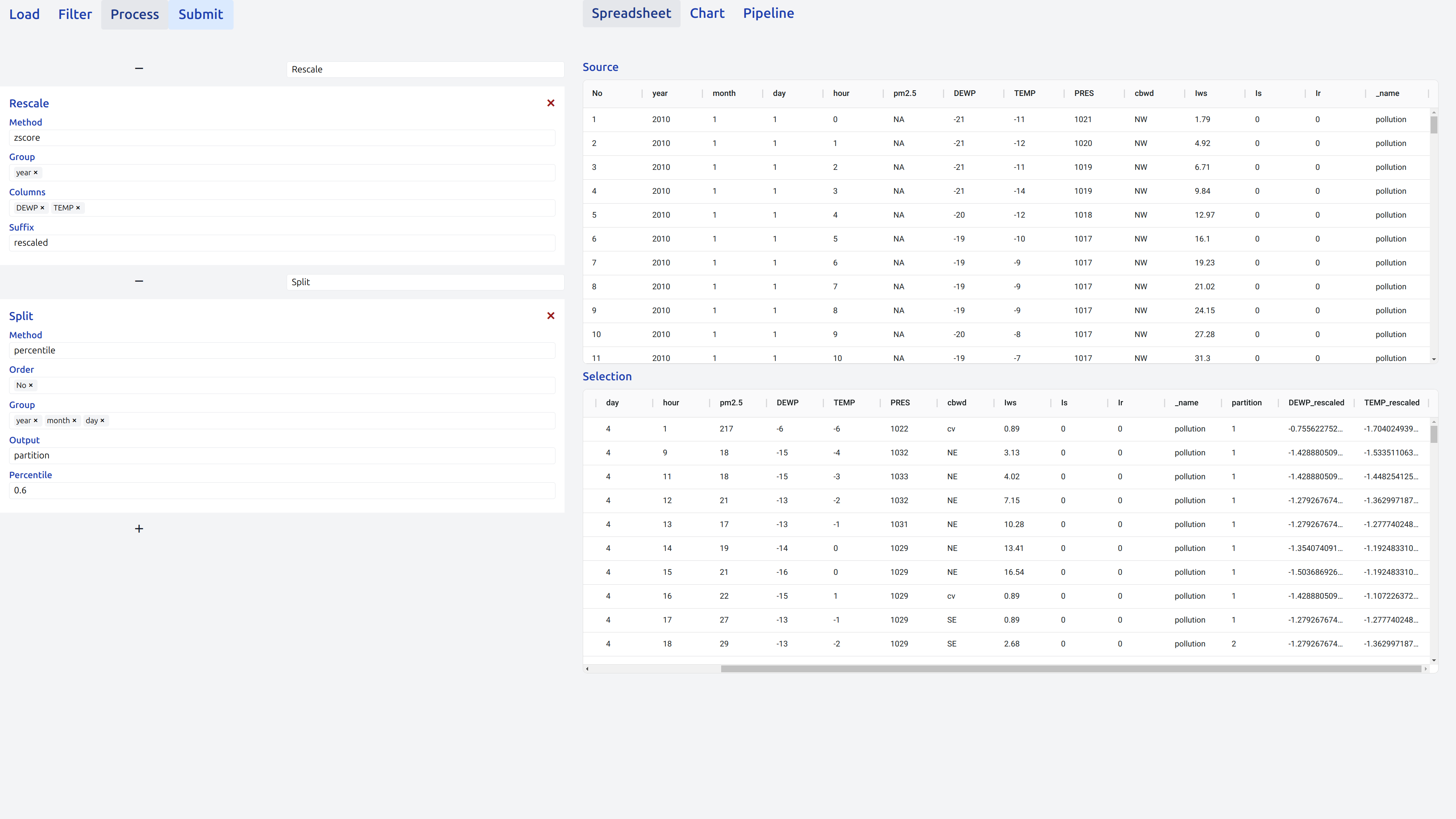

Upon clicking on Submit, the additional columns are added to the Selection table.
